1962 Saturn V Blueprint Set - Isometric Technical Drawings

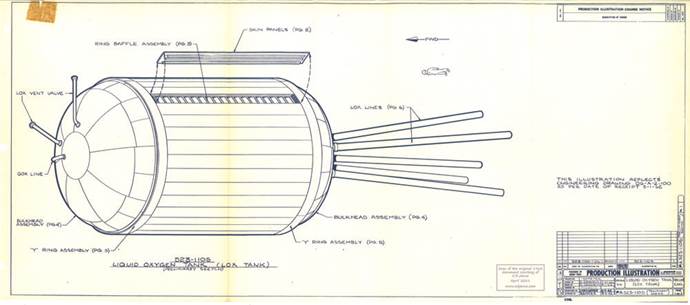

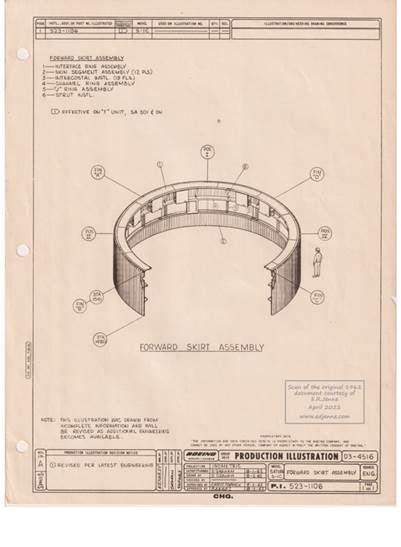

Background: While working at MSFC in the early '70s, my brother Ed Jenne rescued this set of Saturn V blueprints from being tossed out in the trash. These eleven pages consist of beautifully rendered and highly detailed isometric drawings of the various components and assemblies of the Saturn V. Originally produced for Boeing in 1962, these drawings were primarily the work of a technical illustrator, D.Graham. After decades in storage, these bluprints have been scanned, reassembled and converted into these full size downloadable PDF files. For the enjoyment of those people who enjoy the history of spaceflight and great space related artwork, these downloads are free.
